| 起源の場所: | 中国 |
| ブランド名: | Jack-Aiva |
| 証明: | CE SGS |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 10000-20000USD/SET |
| 受渡し時間: | 70営業日 |
High efficiency spiral corrugated post tensioning duct machine for producing galvanized steel PT ducts. Ideal for bridge, highway and precast concrete projects. Automatic, durable and high precision.

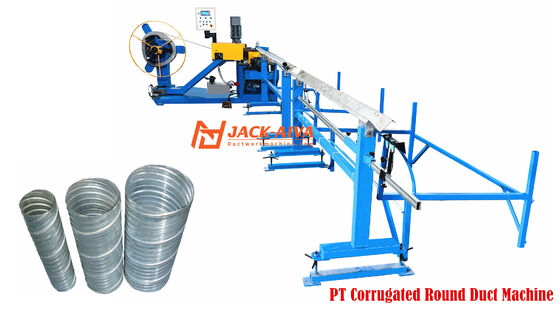

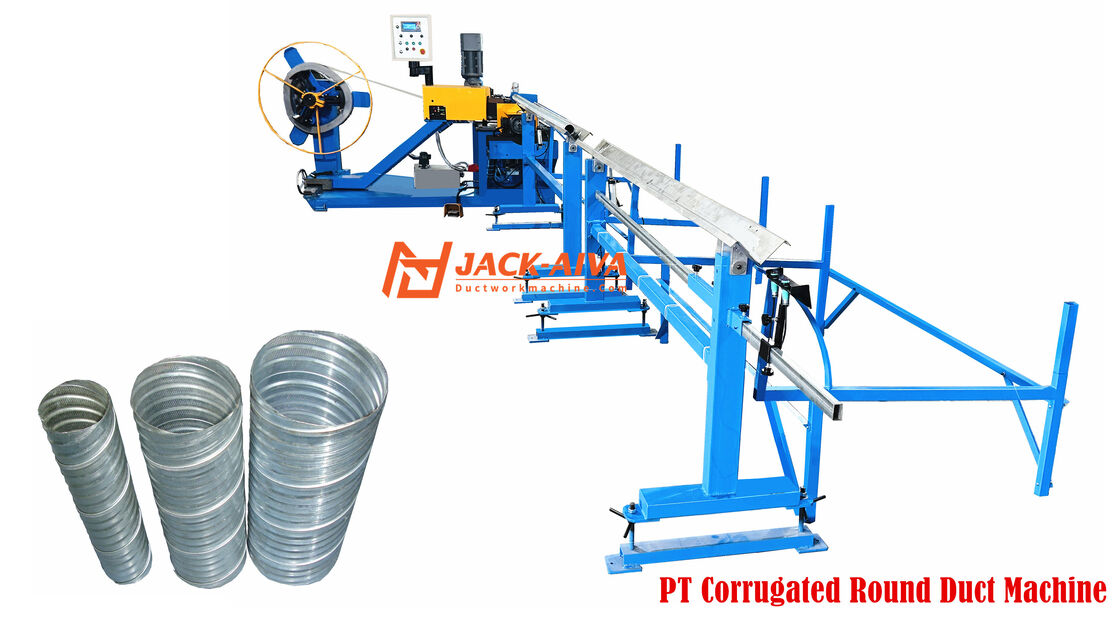

Post Tensioning Duct Making Machine for Prestressed Concrete

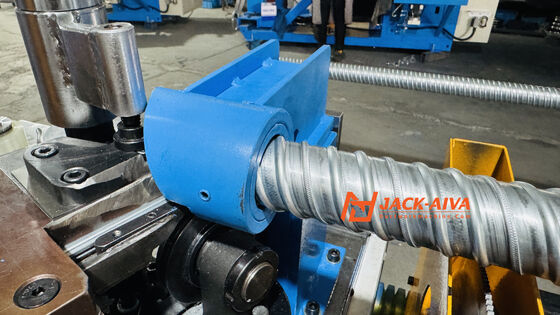

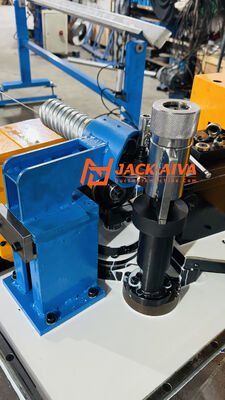

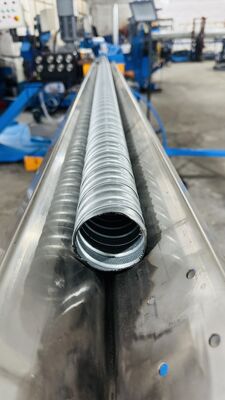

The Spiral Corrugated Post Tensioning Duct Machine (PT Duct Tube Former) is specially designed for manufacturing high-quality corrugated metal ducts used in prestressed concrete structures.
It is widely applied in bridges, highways, railways, tunnels and precast concrete projects, ensuring excellent strength, durability and protection for post-tensioning systems.
With advanced spiral forming technology and automatic control, this machine guarantees stable production, precise dimensions and high efficiency output.
✔️ High Precision Forming – Consistent diameter and spiral pitch
✔️ Double Lock Seam Technology – Stronger and leak-proof ducts
✔️ Wide Diameter Range – Flexible production from small to large ducts
✔️ High Speed Production – Up to 15 m/min
✔️ Automatic Operation – Reduce labor cost
✔️ Durable Structure – Long service life with minimal maintenance
✔️ Compatible Materials – GI steel, cold rolled steel
This Post Tensioning Duct Machine is widely used in:
Main parameters- Post Tensioning Duct Machine
| ITEM | CONTENT |
| Machine type: | PTD55-2 |
| Suitable Material: | GI Steel DC51+Z |
| Strip Width: | 55mm |
| Strip Thickness: | 0.4~0.5mm |
| Seaming Model | Lock style |
| Tube Diameter range | 40- 150mm (duct inner diameter) |
| Roll forming roller | GCR15 After treatment |
| Main motor | 3.7kw |
| Strip feeding Speed | 0-15 m/min |
| Power supply | 3*AC380; 50HZ |
| Weight | Around 1200KG |
| Guarantee period: | 1 year |
This machine is also known as:
Get a Quote Now
Looking for a reliable Post Tensioning Duct Machine manufacturer?
